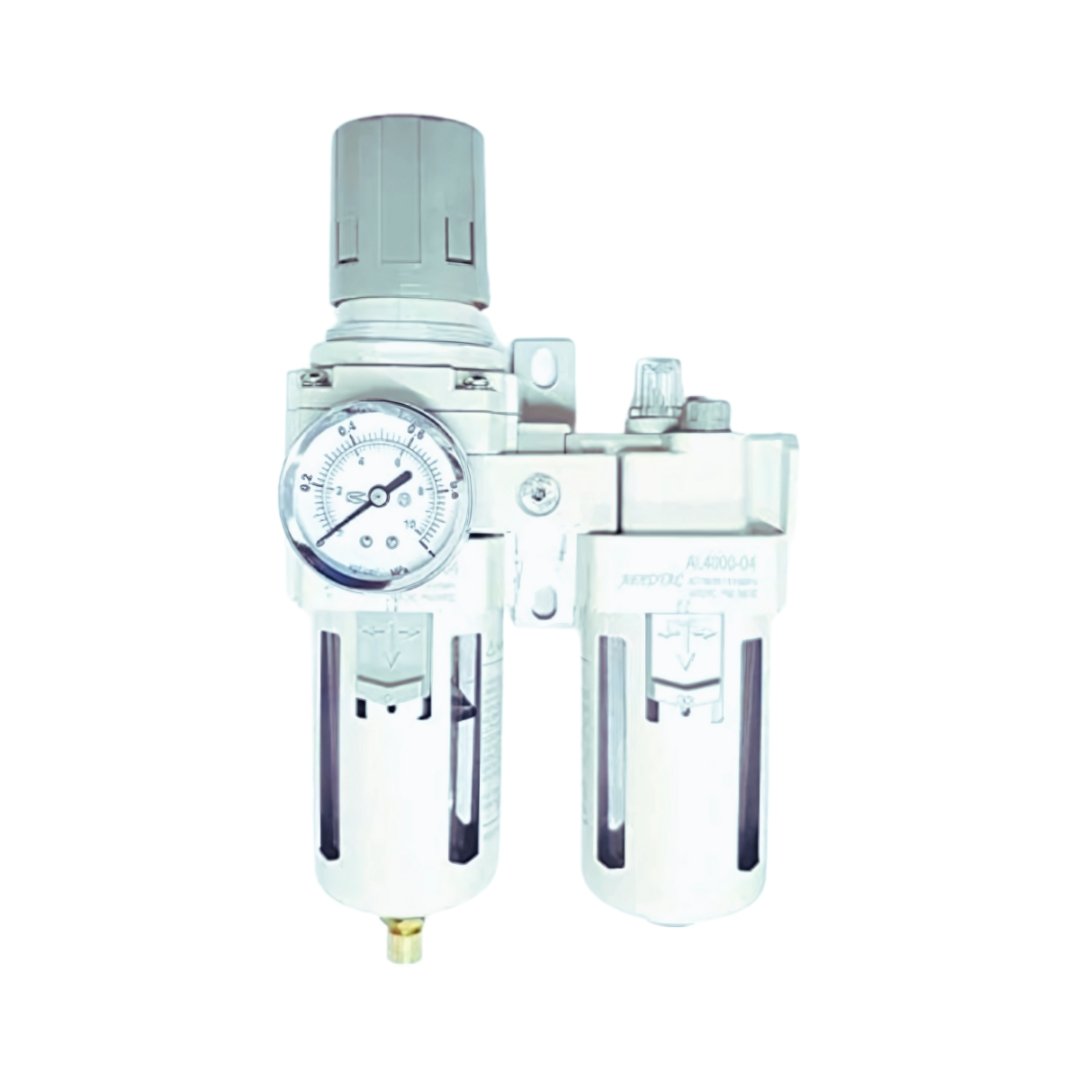

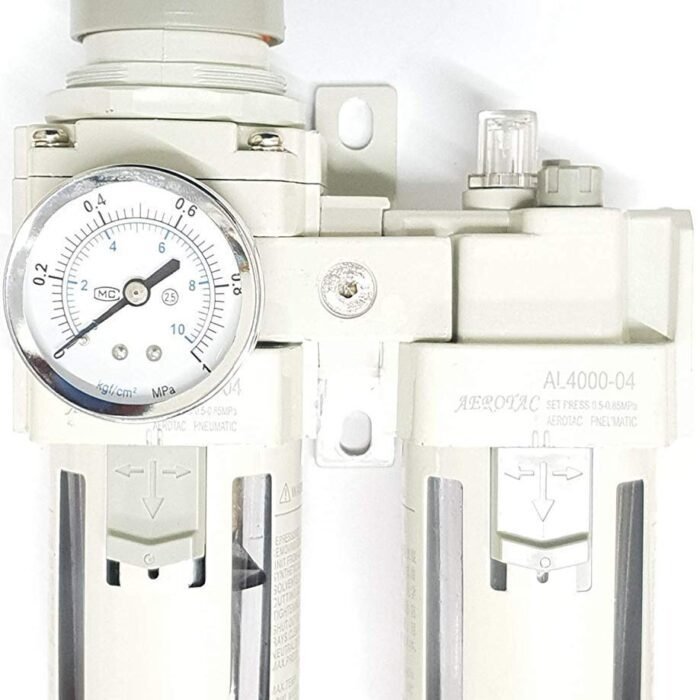

Elephant 1/4″ inch Filter regulator & lubricator – (FRL-AC-2010-02) (Pack of 1)
The Filter, Regulator＆Lubricator is a three-part system. The filter is designed to remove most liquid and solid particles from the air supply. The Self-Relieving Pressure Regulator is used to adjust the outlet pressure. The lubricator provides oil to the air tool and increases the life of the tool.
- Estimated Delivery : Up to 3 to 5 business days
- Free Shipping on All Products
- Filters remove water, dirt and other harmful debris from an air system. This is often the first step in improving the air quality.
- Regulators adjust and control the air pressure of a system to ensure that down-line components do not exceed their maximum operating pressures. This is the second step in the FRL system.
- Lubricators reduce the internal friction in tools or equipment by releasing a controlled mist of oil into the compressed air. This is often done last and/or right before the component needing lubrication.
Product Specifications
Specification for this product family
Installation and Operating:
|
|
|
|
|---|---|---|
PreparationThe assembly of all calibrations shall meet the maximum flow requirement. Please clean the port and fitting before installation, it will effectively avoid bringing dust to the air path. Pay attention to the direction of airflow and arrow pointing on product body if correct, minding port and thread size if match. |

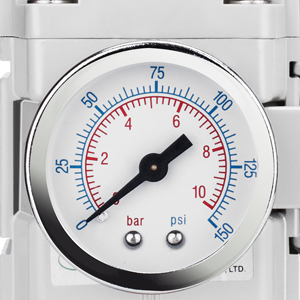

Dial ReadingMake sure that the pressure gauge is tightly installed on the main body, and pay attention to whether the reading rises and falls smoothly while adjusting pressure. |
RefuelingRotates refueling screw clockwise, oil you add should not exceed 80% of the bowl. After refueling, please tighten the refueling screw. |
|
|
|
|
|---|---|---|

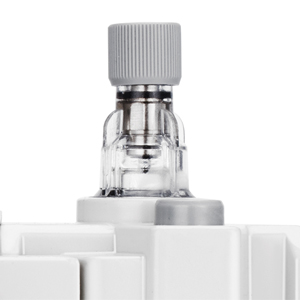

Oil AdjustmentRotate the needle valve in the “+” direction to increase the oil absorption speed, and it will slow down or stop when you rotate to the “-” direction. |

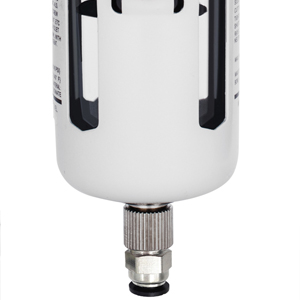

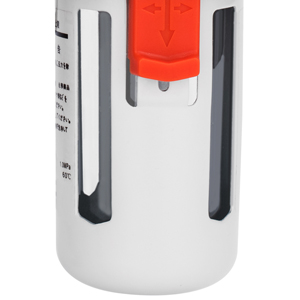

DrainageThe drainage column will automatically excrete if there is no pressure, and it will close during the air flow passing. When the water level is beyond the upper limit, drainage is necessary, otherwise, that will cause poor dehumidification. |
Pressure AdjustmentPull up the knob of the pressure gauge, rotate: If you do clockwise rotation, pressure will rise steadily. Pressure will down when you rotate counterclockwise. Stop turning after reaching the required index and lock down the knob, forget this step you may face a leakage problem. |

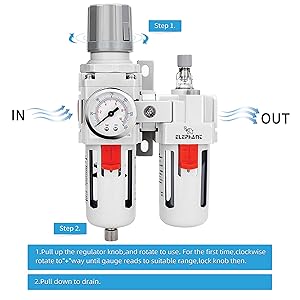

Pressure Regulating Step
|
|
|
|
|
|---|---|---|---|

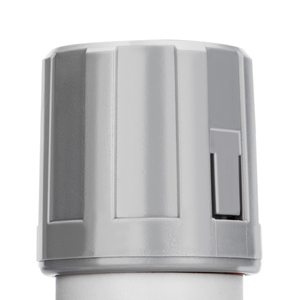

Step 1Hold the Spin Button and Pull Up. |
Step 2Turn the Rotary Button to Adjust the Pressure. |
Step 3The Value Can Be Checked by the Pressure Gauge. |
Step 4Press the Button to Lock the Pressure. |
TECHNOLOGY CHANGES LIFE & TECHNOLOGY CHANGED BY ELEPHANT
ELEPHANT – DEDICATED TO F.R.L.
After more than 20 years of development, ELEPHANT Pneumatic has a professional air power system design and production team to provide customers with high-quality services. Since clean air is an indispensable part in many fields of industry for all kinds of equipment and tools, ELEPHANT F.R.L (Air Filter, Air Regulator, Air Lubricator, and their combinations) can make your air supply safer and more efficient to enlarge your tools life. We provide customized products and services for your differentiated needs.
| Weight | 1.820 kg |
|---|---|
| Dimensions | 18.5 × 11 × 28.5 cm |
