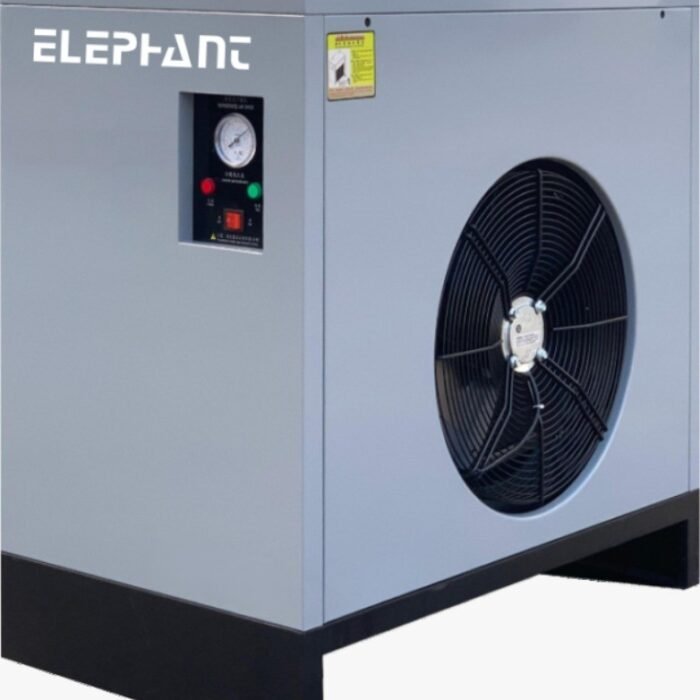

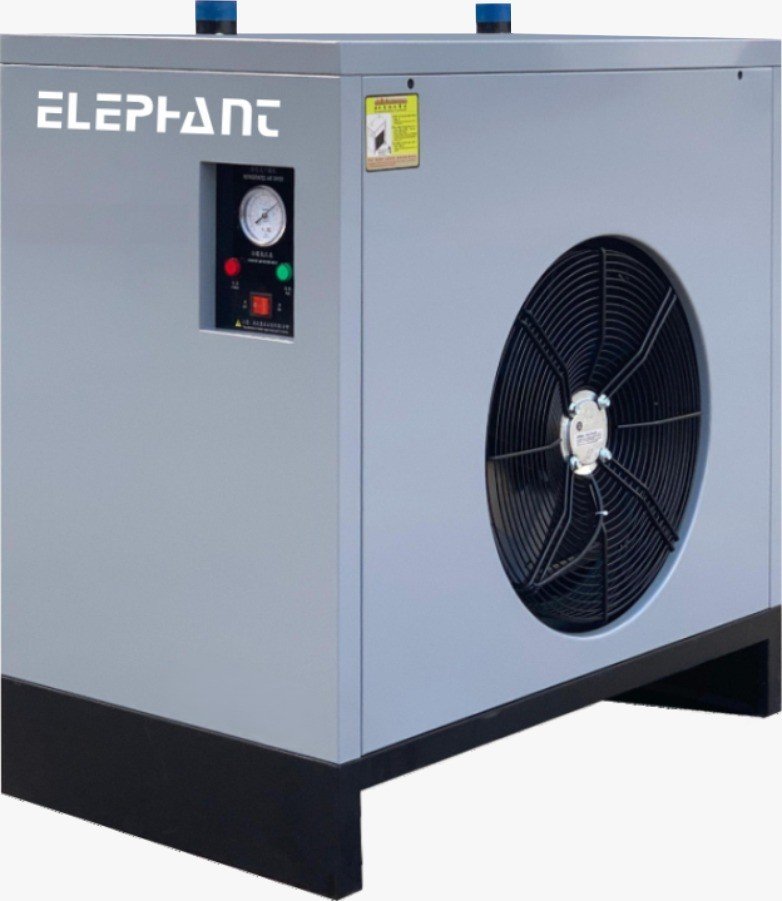

Elephant Air Refrigrated Air Dryer 4TH GEN (EAD-100B).

Elephant Air Refrigrated Air Dryer 4TH GEN (EAD-100B).

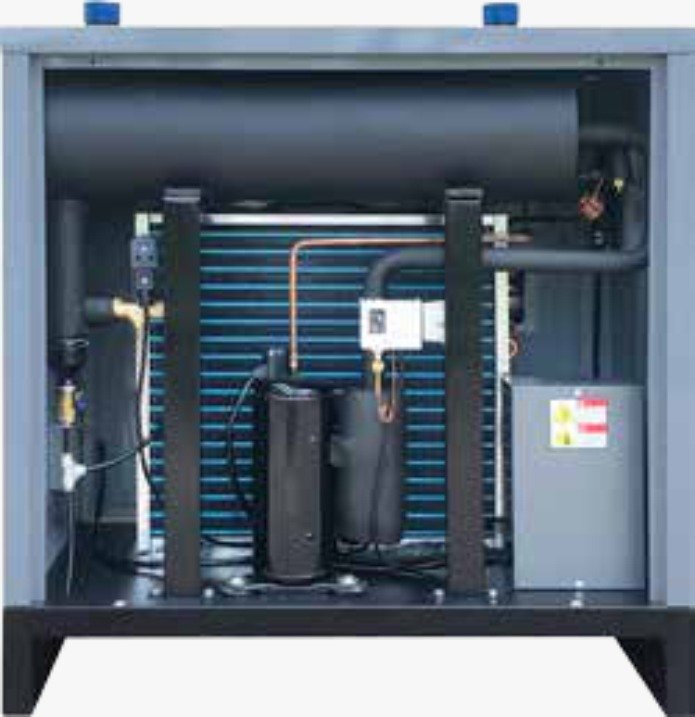

Full capacity air-cooled condenser:
using hydrophilic aluminum foil and high-efficiency copper tube makes heat exchanger efficiency high.

Evaporator :
The evaporator adopts high-quality copper tube and hydrophilic aluminum foil fins to assist special process design to reduce power consumption of condensate.

Electronic drain :
Adjustable drainage frequency ensures complete removal of condense water.

Pressure Switch:
Accurately control the condensing pressure to ensure efficient operation of the refrigeration system.

Compressor:
Adopt new fully enclosed refrigeration compressor, long life, low noise, reliable performance & high energy efficiency.

Standard operating conditions: – Inlet temperature: 10-38°C
Working Pressure: 0.6-1.0 Mpa
Dew Point: 2-10°C
Cooling method: air cooling
Ambient temperature: 2-40°C

Features
In strict accordance with ISO9001, GB150 standards, ISO7183 cold dryer standards, QC is performed for pressure vessel, specifications for design, manufacturing & production to ensure safe and reliable operation of products.
The heat exchanger and air-cooled condenser are independently produced, using hydrophilic aluminum foil, which has high heat exchange efficiency.
Basic installation requirement, can be installed under reasonable ambient temperature, using external rotor fan, large air flow and long life.
Refrigeration parts and control components adopt international high-quality brands to increase service life. Adopt fully enclosed refrigeration compressor, long life, low noise, reliable performance and high energy efficiency.
High-efficiency gas-water separation device with excellent automatic drain valve, continuously and stably drain the condensate out of the machine.
